Using PyMC3 and dynesty to fit Gaussian curves to photopeaks in a gamma-ray spectrum
A gamma-ray spectrum (GRS) is a histogram describing the counts of detected photons as a function of photon energy. GRS can be useful when evaluating the dosage received from a sample containing unknown radioisotopes. To do this, the total counts produced above background by a source has to be calculated.
Above the background level, a gamma source produces sharp peaks, called "photopeaks", due to discrete energy level changes in a nucleus. A method for finding the total counts from a source is to fit a curve to every photopeak in a GRS, and integrate each one to find the total area contained under photopeaks.
In this example, I'll use "PyMC3" and "dynesty" to fit Gaussian curves to peaks found in a gamma-ray spectrum of a sample of Ba-133.
Useful imports
# numpy
import numpy as np
# scipy
from scipy.signal import find_peaks
from scipy.stats import gaussian_kde
from scipy import integrate
from scipy.special import ndtri, gammaln
# plotting
import corner
import matplotlib.pyplot as plt
%matplotlib inline
# samplers
import pymc3 as pm
print('PyMC3 version: {}'.format(pm.__version__))
import dynesty
from dynesty import NestedSampler
from dynesty.utils import resample_equal
print('dynesty version: {}'.format(dynesty.__version__))
# misc
import logging
from time import time
PyMC3 version: 3.8
dynesty version: 1.0.1
Viewing the data
The data is in the form of a histogram with over 16000 bins, each with a width of one "MCA-Channel". This unit of energy is specific to the detector used to collect the GRS, and so we also must calibrate the spectrum to have a bin width in keV.
Start by loading in both the calibration parameters, and the entire gamma-ray spectrum as a list:
# load detector calibration
cali_dir = 'calibration.txt'
with open(cali_dir, 'r') as file:
calibration = file.read().splitlines()
calibration = list(map(float, calibration))
c_0 = calibration[0]
c_2 = calibration[2]
# load gamma-ray spectrum data
spectra_dir = 'Ba.TKA'
with open(spectra_dir, 'r') as file:
counts = [int(j) for j in file]
counts = counts[2:]
The spectrum contains an X-ray region at lower energies, and an extremely noisy region at higher energies. Both of these regions are not very useful for this demonstration, so I'll only show the section I'll be searching for photopeaks.
xrange = np.array(range(len(counts))) # bins for gamma-ray spectrum

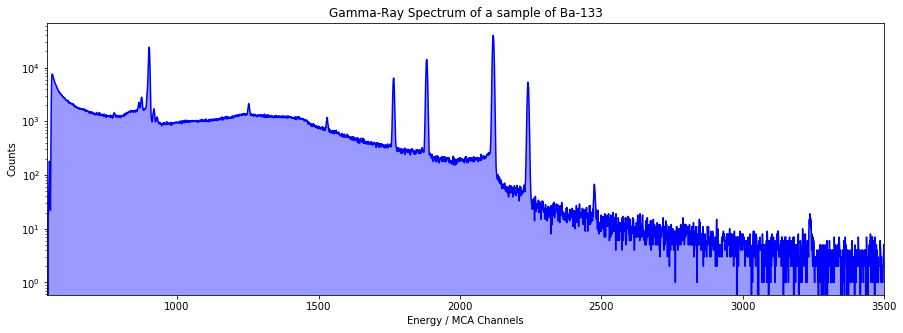

b Plot the spectrum
plt.figure(figsize=(15,5))
plt.plot(xrange, counts, 'b')
plt.fill(xrange, counts, 'b', alpha= 0.4)
plt.xlabel('Energy / MCA Channels')
plt.ylabel('Counts')
plt.title('Gamma-Ray Spectrum of a sample of Ba-133')
plt.yscale('log')
plt.xlim(540, 3500)
plt.show()
The spectrum is made up of a smooth background counts curve, with sharp peaks sitting on top. These are the photopeaks we're searching for. Using scipy's "find_peaks" function, we can select some photopeaks in the spectrum to analyse. This function looks for local maxima by comparing a point to its neighbours. The optional arguments specify the minimum height for a peak to be returned, and a "neighbourhood width", so only the largest peak in a given neighbourhood will be returned.
# find prominent peaks in data using scipy
peaks = find_peaks(counts, height=1300, distance=100)[0][3:]
This function returns the indicies at which a peak maximum is located in the gamma-ray spectrum. Next, I'll define a "radius" of 20 bins around each peak centre, and create lists containing the data for each peak.

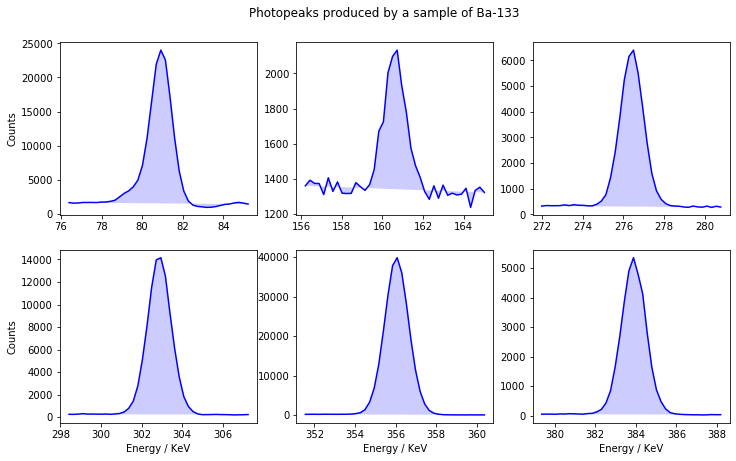

Let's plot each peak to see what the function found:
# select an area around peak to be plotted & calibrate energy scale to keV
ranger = 20
peaks_x = [c_0*np.array(range(peak-ranger, peak+ranger)) + c_2 for peak in peaks]
peaks_y = [counts[peak-ranger:peak+ranger] for peak in peaks]
# plot selected peaks from gamma-ray spectrum
fig, axs = plt.subplots(2,3, figsize=(12,7))
for i in range(2):
for j in range(3):
ind = 3*i + j
axs[i,j].plot(peaks_x[ind], peaks_y[ind], 'b')
axs[i, j].fill(peaks_x[ind], peaks_y[ind], 'b', alpha=0.2)
if i == 1:
axs[i,j].set_xlabel('Energy / KeV')
if j == 0:
axs[i,j].set_ylabel('Counts')
fig.suptitle('Photopeaks produced by a sample of Ba-133', y=0.95)
plt.show()
The model
The decays that cause the photopeaks in a GRS have a discrete energy. The width of the photopeaks is caused by imperfections in the detector crystal, such as defects or excess thermal energy. This causes each peak to have a Gaussian nature, rather than a sharp peak.
I'll attempt to fit a Gaussian curve to each peak, by first defining the Gaussian function to be used:
def gauss(x, a, xc, w, y0):
"""
Gaussian function
:param x: 1D array of input points
:param a: Amplitude of peak
:param xc: Mean peak energy
:param w: Standard deviation of peak
:param y0: Background counts under peak
:return: 1D array of Gaussian output points
"""
return a*np.exp(-(x-xc)**2/(2*w**2))+y0
Modelling with PyMC3
Our goal is to find the values of the parameters above that best explain each photopeak. To ensure that the algorithms quickly converge on the most likely parameter values, I'll guess some values for the parameters of each peak, simply by using the plots above. Since the standard deviation appears roughly the same for all the peaks, I'll set the prior to be uniform.
#initialise a model for each peak, and define guesses for the parameters
gauss_models = [pm.Model() for i in range(len(peaks))]
a_guesses = [23000., 900., 6100., 13800., 39800., 5300.]
xc_guesses = [81., 161., 276.5, 303., 356., 384.]
y0_guesses = [1700., 1350., 300., 300., 250., 50.]
Sampling the data
Next, I'll use the above guesses to initialise each model. PyMC3 requires the user to provide a prior for each parameter, and a likelihood function, which can be easily set using the PyMC3 in-built Normal, Uniform, and Poisson probability distribution functions.
I'll be using a Poisson likelihood, since Poisson distributions show how many times an event is likely to occur in a certain time period, assuming that events are independent and occur at a constant rate. Since radioactive decays are independent, and the half-life of Ba-133 (10.5 years) is long enough for the decay rate to be roughly constant over a one-week long measurement, this makes a Poisson distribution suited for photon counting.
The priors and likelihood can be set within the scope of each model defined above, using the "with" statement:
for i in range(len(peaks)):
with gauss_models[i]:
# set prior parameters
# amplitude
a_mu = a_guesses[i] # mean of amplitude of peaks
a_sig = 100. # standard deviation of amplitude of peaks
# peak energy
xc_mu = xc_guesses[i] # mean of peak energy
xc_sig = 1. # standard deviation of peak energy
# standard deviation
w_min = 0.3 # lower bound of peak standard deviation
w_max = 2.5 # upper bound of peak standard deviation
# background counts
y0_mu = y0_guesses[i] # mean of background counts
y0_sig = 30. # standard deviation of background counts
# set normal priors
a_model = pm.Normal('Amplitude', mu=a_mu, sd=a_sig)
xc_model = pm.Normal('Peak Energy', mu=xc_mu, sd=xc_sig)
w_model = pm.Uniform('Standard Deviation', lower=w_min, upper=w_max)
y0_model = pm.Normal('Background Counts', mu=y0_mu, sd=y0_sig)
# expected value of outcome
mu = gauss(peaks_x[i], a_model, xc_model, w_model, y0_model)
# Poisson likelihood of observations
Y_obs = pm.Poisson('Y_obs', mu=mu, observed=peaks_y[i])
Now each model has been initialised, the MCMC sampling algorithm can now be applied. PyMC3 uses a set of samples, as well as a set of tuning samples. We can also use the "time" package to record how long it took to sample all of the photopeaks.
Nsamples = 800 # number of samples
Ntune = 1000 # number of tuning samples
# disable PyMC3 console logs, for neatness
logger = logging.getLogger('pymc3')
logger.setLevel(logging.ERROR)
# perform sampling
traces = []
t0 = time()
for i in range(len(peaks)):
with gauss_models[i]:
traces.append(pm.sample(Nsamples, tune=Ntune, discard_tuned_samples=True))
t1 = time()
timepymc3 = t1-t0 # time taken to sample all of the photopeaks
print('{} seconds ({} seconds per peak) taken to run PyMC3 sampling.'.format(timepymc3, timepymc3/6))
Sampling 4 chains, 0 divergences: 100%|██████████| 7200/7200 [00:10<00:00, 699.00draws/s]
Sampling 4 chains, 0 divergences: 100%|██████████| 7200/7200 [00:09<00:00, 757.94draws/s]
Sampling 4 chains, 0 divergences: 100%|██████████| 7200/7200 [00:10<00:00, 715.65draws/s]
Sampling 4 chains, 0 divergences: 100%|██████████| 7200/7200 [00:10<00:00, 674.49draws/s]
Sampling 4 chains, 0 divergences: 100%|██████████| 7200/7200 [00:10<00:00, 661.42draws/s]
Sampling 4 chains, 0 divergences: 100%|██████████| 7200/7200 [00:10<00:00, 710.30draws/s]
276.74090600013733 seconds (46.123484333356224 seconds per peak) taken to run PyMC3 sampling.
Sampling the data - Alternate method
The above method uses a Poisson likelihood. However, since the peaks in the gamma-ray spectrum have large enough amplitudes, the likelihood can be well approximated by a normal distribution, with an estimate for the noise standard deviation. Guessing this standard deviation value is tricky, so instead we can set it as an extra parameter for the sampler. A good prior to start with is a uniform probability distribution in log-space, meaning the standard deviation has an equal probability of having any order of magnitude between an upper and lower bound.
I'll showcase this method, but I'll use the previous method for the results section below. I'll also use only the 2nd peak found, as it has the noisiest data and will likely produce the most interesting results. Start by initiating a new set of models using similar code as before, but with the new likelihood.
gauss_model_alt = pm.Model()
with gauss_model_alt:
# set prior parameters
# amplitude
a_mu = a_guesses[1] # mean of amplitude of peaks
a_sig = 50. # standard deviation of amplitude of peaks
# peak energy
xc_mu = xc_guesses[1] # mean of peak energy
xc_sig = 1. # standard deviation of peak energy
# standard deviation
w_mu = 1.2 # mean of peak standard deviation
w_sig = 1. # standard deviation of peak standard deviation
# background counts
y0_mu = y0_guesses[1] # mean of background counts
y0_sig = 30. # standard deviation of background counts
# noise deviation
sigma_min = -1 # minimum order of magnitude of the noise deviation
sigma_max = 2 # maximum order of magnitude of the noise deviation
# set normal priors
a_model = pm.Normal('Amplitude', mu=a_mu, sd=a_sig)
xc_model = pm.Normal('Peak Energy', mu=xc_mu, sd=xc_sig)
w_model = pm.Normal('Standard Deviation', mu=w_mu, sd=w_sig)
y0_model = pm.Normal('Background Counts', mu=y0_mu, sd=y0_sig)
# set uniform prior
sigma_model = pm.Uniform('Noise', lower=sigma_min, upper=sigma_max)
# expected value of outcome
mu = gauss(peaks_x[1], a_model, xc_model, w_model, y0_model)
# normal likelihood of observations with noise
Y_obs = pm.Normal('Y_obs', mu=mu, sd=10 ** sigma_model, observed=peaks_y[1])
Performing the sampling again gives our alternate posteriors:
Nsamples = 800
Ntune = 1000
# perform sampling
t0_alt = time()
with gauss_model_alt:
trace_alt = pm.sample(Nsamples, tune=Ntune, discard_tuned_samples=True)
t1_alt = time()
timepymc3_alt = t1_alt-t0_alt
print('{} seconds taken to run PyMC3 alternate sampling.'.format(timepymc3_alt))
Sampling 4 chains, 0 divergences: 100%|██████████| 7200/7200 [00:09<00:00, 727.73draws/s]
43.72043991088867 seconds taken to run PyMC3 alternate sampling.
We can now briefly use the trace to see what values the sampler converged on for each parameter. I'll return to these values later when finding the uncertainty of the counts under the photopeak.
# collect samples of each parameter
samples_alt = np.vstack((trace_alt['Amplitude'],
trace_alt['Peak Energy'],
trace_alt['Standard Deviation'],
trace_alt['Background Counts'],
trace_alt['Noise'])).T
# mean and standard deviation error of each parameter
a_alt, a_err_alt = np.mean(samples_alt[:,0]), np.std(samples_alt[:,0])
xc_alt, xc_err_alt = np.mean(samples_alt[:,1]), np.std(samples_alt[:,1])
w_alt, w_err_alt = np.mean(samples_alt[:,2]), np.std(samples_alt[:,2])
y0_alt, y0_err_alt = np.mean(samples_alt[:,3]), np.std(samples_alt[:,3])
sigma_alt, sigma_err_alt = np.mean(samples_alt[:,4]), np.std(samples_alt[:,4])
a_w_alt_cov = np.cov(samples_alt)[0,2]
# print values
print('Parameter mean values with uncertainties for a photopeak in a sample of Ba-133: \n \n ' +
' Amplitude = {} \u00B1 {} counts \n'.format(a_alt, a_err_alt) +
' Peak Energy = {} \u00B1 {} keV \n'.format(xc_alt, xc_err_alt) +
' Standard Deviation = {} \u00B1 {} keV \n'.format(w_alt, w_err_alt) +
' Background Counts = {} \u00B1 {} counts \n'.format(y0_alt, y0_err_alt) +
' Noise = {} \u00B1 {} counts'.format(sigma_alt, sigma_err_alt))
Parameter mean values with uncertainties for a photopeak in a sample of Ba-133:
Amplitude = 805.5161312481847 ± 22.51101688252669 counts
Peak Energy = 160.6059216398261 ± 0.018834853387709613 keV
Standard Deviation = 0.5233786079419919 ± 0.019371192247871535 keV
Background Counts = 1333.599554840382 ± 7.251969008469188 counts
Noise = 1.5885697487281636 ± 0.05223363708405703 counts
Results
Now that the data has been sampled, we can collect the information for each parameter posterior using the traces. By using a dictionary, we can also collect the mean and standard deviation for each parameter, which will be useful later for plotting the fitted curves.
# collect traces of each parameter from each peak
all_pymc3_samples = [np.vstack((trace['Amplitude'],
trace['Peak Energy'],
trace['Standard Deviation'],
trace['Background Counts'])).T for trace in traces]
# dictionaries to contain mean and standard deviation of each peak
resdict = [{} for i in range(len(peaks))]
for ind in range(len(peaks)):
resdict[ind]['a_mu'] = np.mean(all_pymc3_samples[ind][:, 0])
resdict[ind]['a_sig'] = np.std(all_pymc3_samples[ind][:, 0])
resdict[ind]['xc_mu'] = np.mean(all_pymc3_samples[ind][:, 1])
resdict[ind]['xc_sig'] = np.std(all_pymc3_samples[ind][:, 1])
resdict[ind]['w_mu'] = np.mean(all_pymc3_samples[ind][:, 2])
resdict[ind]['w_sig'] = np.std(all_pymc3_samples[ind][:, 2])
resdict[ind]['y0_mu'] = np.mean(all_pymc3_samples[ind][:, 3])
resdict[ind]['y0_sig'] = np.std(all_pymc3_samples[ind][:, 3])
To visualise the information given for each parameter, we can define a function to plot the parameter posteriors, and also create contour plots that describe how any two parameters might depend on each other. This is done using "corner.py".
As an example, I'll use the 2nd peak again due to its noisy data:
def plotposts(samples, labels, **kwargs):
"""
Function to plot posteriors using corner.py and scipy's Gaussian KDE function.
"""
fig = corner.corner(samples, labels=labels, hist_kwargs={'density': True}, **kwargs)
plt.subplots_adjust(wspace=0.2, hspace=0.2)
# plot KDE smoothed version of distributions
for axidx, samps in zip([0, 5, 10, 15], samples.T):
kde = gaussian_kde(samps)
xvals = fig.axes[axidx].get_xlim()
xvals = np.linspace(xvals[0], xvals[1], 100)
fig.axes[axidx].plot(xvals, kde(xvals), color="firebrick")

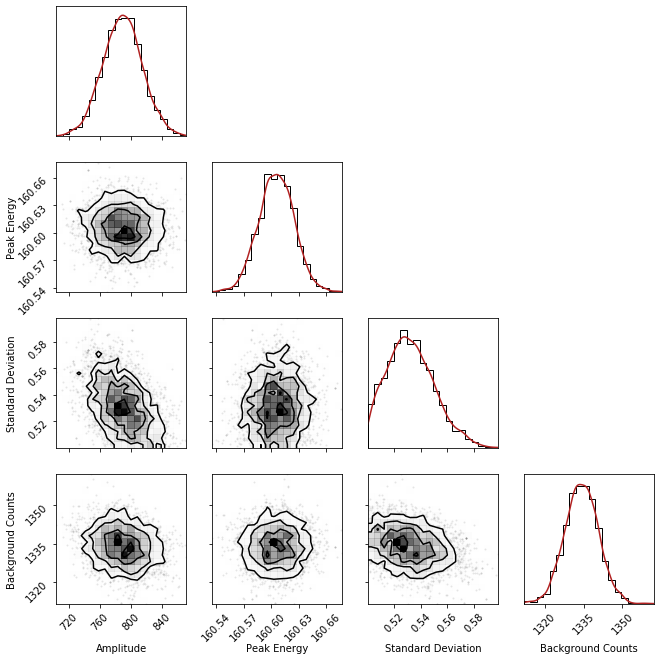

# create corner plot for peak with noisiest data
labels = [r'Amplitude', r'Peak Energy', r'Standard Deviation', r'Background Counts']
corner_plot_samples = all_pymc3_samples[1]
plotposts(corner_plot_samples, labels)
This corner plot shows that the amplitude of a photopeak and its standard deviation are dependent, since their contour plot is not symmetric.

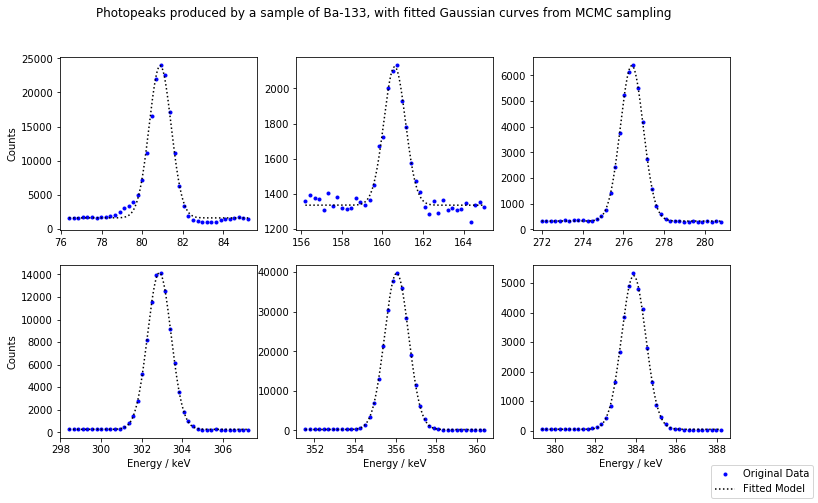

Now that we have the parameter posteriors, along with their means and standard deviations, we can state the most likely value of each parameter, with their uncertainties:
a, a_err = resdict[1]['a_mu'], resdict[1]['a_sig']
xc, xc_err = resdict[1]['xc_mu'], resdict[1]['xc_sig']
w, w_err = resdict[1]['w_mu'], resdict[1]['w_sig']
y0, y0_err = resdict[1]['y0_mu'], resdict[1]['y0_sig']
print('Parameter mean values with uncertainties for a photopeak in a sample of Ba-133: \n \n' +
' Amplitude = {} \u00B1 {} counts \n'.format(a, a_err) +
' Peak Energy = {} \u00B1 {} keV \n'.format(xc, xc_err) +
' Standard Deviation = {} \u00B1 {} keV \n'.format(w, w_err) +
' Background Counts = {} \u00B1 {} counts \n'.format(y0, y0_err))
Parameter mean values with uncertainties for a photopeak in a sample of Ba-133:
Amplitude = 789.3499838312316 ± 25.40762174271906 counts
Peak Energy = 160.60556153256505 ± 0.019374762693360942 keV
Standard Deviation = 0.5324207733753832 ± 0.017697951515753676 keV
Background Counts = 1334.1324943543657 ± 6.560639436166777 counts
Plotting the posterior
Using the mean values for each parameter, we can define a Gaussian curve for each peak. Plotting this curve over the original data gives the best fit curve for that data. This best fit can be integrated, and by summing the integrals for each peak, the total counts of the gamma-ray spectrum can be found.
# plot each peak, with the fitted Gaussians superimposed
fig, axs = plt.subplots(2, 3, figsize=(12, 7))
for i in range(2):
for j in range(3):
ind = 3 * i + j
a = resdict[ind]['a_mu']
xc = resdict[ind]['xc_mu']
w = resdict[ind]['w_mu']
y0 = resdict[ind]['y0_mu']
x = peaks_x[ind]
y = peaks_y[ind]
# plot original data
axs[i, j].plot(x, y, 'b.',
alpha=1,
label=('Original Data' if all(num == 0 for num in [i,j]) else ''))
# plot fitted curve over the data
xsmooth = np.linspace(x[0], x[-1], len(x) * 100)
axs[i, j].plot(xsmooth, gauss(xsmooth, a, xc, w, y0), 'k:',
alpha=1,
label=('Fitted Model' if all(num == 0 for num in [i,j]) else ''))
if i == 1:
axs[i, j].set_xlabel('Energy / keV')
if j == 0:
axs[i, j].set_ylabel('Counts')
leg = fig.legend(loc='lower right', numpoints=1)
for lh in leg.legendHandles:
lh.set_alpha(1)
fig.suptitle('Photopeaks produced by a sample of Ba-133,' +
' with fitted Gaussian curves from MCMC sampling')
plt.show()
Alternatively, instead of using the means of the parameters to plot the fitted curve, we can use the posterior distributions to randomly sample predictions of each parameter. We can then overplot multiple curves onto the data set. This is useful as instead of only showing the most likely model, it visualises the overall uncertainty of the fit.
Again, I'll use the noisiest peak as an example. First, randomly choose 300 of each parameter from their posteriors:
# number of curves to plot per peak
n_fits = 300
a_samps_pymc3, xc_samps_pymc3, w_samps_pymc3, y0_samps_pymc3 = ([] for i in range(4))
for ind in range(len(peaks)):
a_samps_pymc3.append(np.random.choice(all_pymc3_samples[ind][:, 0], size=n_fits))
xc_samps_pymc3.append(np.random.choice(all_pymc3_samples[ind][:, 1], size=n_fits))
w_samps_pymc3.append(np.random.choice(all_pymc3_samples[ind][:, 2], size=n_fits))
y0_samps_pymc3.append(np.random.choice(all_pymc3_samples[ind][:, 3], size=n_fits))
We now have 300 sets of potential parammeters. For each set of parameters, define and overplot a Gaussian curve as before, each curve being slightly different. In regions of the plot where a lot of curves overlap, the plot will appear darker relative to regions with fewer curves. The resulting plots show the regions where a fitted curve is more likely to fall. This is called a posterior predictive plot.

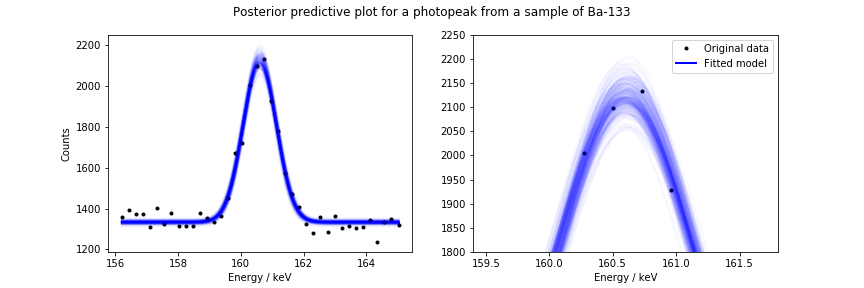

The plot below shows the posterior predictive distribution for the noisiest photopeak. I also included a second plot, which shows a "zoomed in" view of the tip of the peak, at which the most deviation occurs.
ind = 1
x = peaks_x[ind]
xsmooth = np.linspace(x[0], x[-1], len(x) * 100)
fig, (ax1, ax2) = plt.subplots(1,2, figsize=(12,4))
for i in range(n_fits):
ax1.plot(xsmooth, gauss(xsmooth, a_samps_pymc3[ind][i], xc_samps_pymc3[ind][i],
w_samps_pymc3[ind][i], y0_samps_pymc3[ind][i]),
'b-', alpha=0.01, linewidth=2)
ax2.plot(xsmooth, gauss(xsmooth, a_samps_pymc3[ind][i], xc_samps_pymc3[ind][i],
w_samps_pymc3[ind][i], y0_samps_pymc3[ind][i]),
'b-', alpha=0.02, linewidth=2)
ax1.set_ylabel('Counts')
ax1.set_xlabel('Energy / keV')
ax2.set_xlim(159.4,161.8)
ax2.set_ylim(1800, 2250)
ax2.set_xlabel('Energy / keV')
fig.suptitle('Posterior predictive plot for a photopeak from a sample of Ba-133')
plt.show()
Model comparisons
Now that we have a model with the mean fitted parameters for each curve, we can integrate to find the total area under a curve. Using the uncertainty in each parameter from above, the percentage error in the total counts can be found. This can be used as a nice way to judge the quality of the fit, and whether the curve can be "trusted" to approximate the data.
Using scipy's "integrate.quad" function makes the integration simple. I'll use the same example peak as perviously, integrating between the bottom of the tails of the peak. When finding the area error, we must also consider the covariance between the amplitude and standard deviation, which I show below:
# parameter means and standard deviations of peak
a_pymc3, aerr_pymc3 = resdict[1]['a_mu'], resdict[1]['a_sig']
xc_pymc3, xcerr_pymc3 = resdict[1]['xc_mu'], resdict[1]['xc_sig']
w_pymc3, werr_pymc3 = resdict[1]['w_mu'], resdict[1]['w_sig']
y0_pymc3, y0err_pymc3 = resdict[1]['y0_mu'], resdict[1]['y0_sig']
a_w_cov = np.cov(all_pymc3_samples[1])[0, 2]
# integrate, dividing by the calibration coefficient (to remove keV from the units)
peak_integral = integrate.quad(lambda t: gauss(t, a_pymc3, xc_pymc3,
w_pymc3, y0_pymc3), 159.1, 162.2)[0] / c_0
peak_integral_err = np.sqrt(2 * np.pi * ((w_pymc3 * aerr_pymc3) ** 2 +
(a_pymc3 * werr_pymc3) ** 2 )
+ 2*a*w*a_w_cov) / c_0
percent_err = 100*peak_integral_err/peak_integral
print('Total counts = {} \u00B1 {} counts \n'.format(peak_integral, peak_integral_err) +
'Percentage error = {}%'.format(percent_err))
Total counts = 22933.86204613347 ± 195.58699451020811 counts
Percentage error = 0.8500378971345341%
This percentage error was found using a Poisson likelihood, as described above. For a comparison, this integration can be repeated for the alternate sampling method, with a normal likelihood. Using the same alternate parameters that were found earlier, run the same integration process as before:
peak_integral_alt = integrate.quad(lambda t:
gauss(t, a_alt, xc_alt, w_alt, y0_alt), 159.1, 162.2)[0] / c_0
peak_integral_err_alt = np.sqrt(2 * np.pi *
((w_alt * a_err_alt) ** 2 +
(a_alt * w_err_alt) ** 2 )
+ 2*a_alt*w_alt*a_w_alt_cov) / c_0
percent_err_alt = 100*peak_integral_err_alt/peak_integral_alt
print('Alternate total counts = {} \u00B1 {} counts \n'.format(peak_integral_alt,
peak_integral_err_alt) +
'Alternate percentage error = {}%'.format(percent_err_alt))
Alternate total counts = 22943.751210742565 ± 193.76313608385547 counts
Alternate percentage error = 0.8447589197287152%
It appears both methods result in a very simillar pecentage error, even though the alternate method is a little faster on my machine. This validates the theory that using a normal likelihood distribution on this photopeak approximates a Poisson distribution pretty well.
In both cases, a percentage error of around 1% is more than acceptable, in general. Initially, I used a least-squares algorithm to fit curves to this same data set, which produced a percentage error of around 1.3%. This leads me to conclude that using an MCMC algorithm was quite successful.
Modelling with dynesty
Now that we've evaluated PyMC3's ability to sample the gamma-ray spectrum, we can explore other samplers to see if they produce similar results. For this, I'll use "dynesty". This sampler uses nested sampling, rather than MCMC. The key difference between these algorithms is that nested sampling produces an estimate for the marginal likelihood, whilst MCMC does not. I'll again stick to using just the second peak, since we're only really interested in the relative performance of the samplers here.
Sampling the data
Using dynesty is slightly more complicated than PyMC3. Most nested sampling algorithms need to sample from a uniform hyper-cube parameter space. All of our priors have a normal prior distribution, so we first need to define a "prior transform" function. This function will transform the priors into the right format, and then transform them back after the sampling.
def priortransform(theta):
# unpack the transformed parameters
a_t, xc_t, w_t, y0_t = theta
# define our prior guesses for each parameter
a_mu, a_sig = a_guesses[1], 50.
xc_mu, xc_sig = xc_guesses[1], 1.
w_mu, w_sig = 0.7, 0.3
y0_mu, y0_sig = y0_guesses[1], 30.
# convert back to
a = a_mu + a_sig*ndtri(a_t)
xc = xc_mu + xc_sig*ndtri(xc_t)
w = w_mu + w_sig*ndtri(w_t)
y0 = y0_mu + y0_sig*ndtri(y0_t)
return a,xc,w,y0
Next, we need to define a Poisson log likelihood function. For dynesty, I'll be using a hand-made likelihood function:
def loglike(theta):
"""
Function to return the log likelihood
:param theta: tuple or list containing each parameter
:param obs: list or array containing the observed counts of each data point
:param times: list or array containing the energy at which each data point is recorded
"""
# unpack parameters
a_like, xc_like, w_like, y0_like = theta
# expected value
lmbda = np.array(gauss(peaks_x[1], a_like, xc_like, w_like, y0_like))
n = len(peaks_y[1])
a = np.sum(gammaln(np.array(peaks_y[1])+1))
b = np.sum(np.array(peaks_y[1]) * np.log(lmbda))
return -np.sum(lmbda) - a + b
Now we can begin to set up the hyperparameters for the nested sampling algorithm. For dynesty, we need to provide the number of live points, sampling algorithm, sampling method, and a stopping criterion. Since the Gaussian model only has 4 parameters, we can choose a bound and sampling method that work well with low-dimensional models:
stop = 0.1 # stopping criterion
nparam = 4 # number of parameters
sampler = NestedSampler(loglike, priortransform, nparam,
bound='multi', sample='unif', nlive=1000)
t0_dynesty = time()
sampler.run_nested(dlogz=stop, print_progress=False)
t1_dynesty = time()
print('{} seconds taken to run dynesty sampling'.format(t1_dynesty-t0_dynesty))
10.890472173690796 seconds taken to run dynesty sampling
We can now collect the results and view the summary of the sampling process, which includes the log of the marginal likelihood, number of iterations, and some other values:
results = sampler.results
print(results.summary())
Summary
=======
nlive: 1000
niter: 13873
ncall: 86323
eff(%): 17.229
logz: -212.097 +/- 0.141
None
Results
To retrieve the posteriors for each parameter from a nested sampling algorithm, you need to resample using weights, which dynesty outputs with the results. This can be done easily as is shown below:
weights = np.exp(results['logwt'] - results['logz'][-1])
samples = results.samples
dynesty_samples = resample_equal(samples, weights)
Now, using the same methods as before, we can print the mean and error of the parameters, and sample the posteriors to produce a posterior predictive plot for the second peak in our data:
a, xc, w, y0 = [dynesty_samples[:,i] for i in range(4)]
a_dynesty, aerr_dynesty = np.mean(a), np.std(a)
xc_dynesty, xcerr_dynesty = np.mean(xc), np.std(xc)
w_dynesty, werr_dynesty = np.mean(w), np.std(w)
y0_dynesty, y0err_dynesty = np.mean(y0), np.std(y0)
a_w_dynesty_cov = np.cov(dynesty_samples)[0,2]
nfits = 300
a_samps_dynesty = np.random.normal(a_dynesty, aerr_dynesty, nfits)
xc_samps_dynesty = np.random.normal(xc_dynesty, xcerr_dynesty, nfits)
w_samps_dynesty = np.random.normal(w_dynesty, werr_dynesty, nfits)
y0_samps_dynesty = np.random.normal(y0_dynesty, y0err_dynesty, nfits)
print('Parameter mean values with uncertainties for a photopeak in a sample of Ba-133: \n \n ' +
' Amplitude = {} \u00B1 {} counts \n'.format(a_dynesty, aerr_dynesty) +
' Peak Energy = {} \u00B1 {} keV \n'.format(xc_dynesty, xcerr_dynesty) +
' Standard Deviation = {} \u00B1 {} keV \n'.format(w_dynesty, werr_dynesty) +
' Background Counts = {} \u00B1 {} counts \n'.format(y0_dynesty, y0err_dynesty))
Parameter mean values with uncertainties for a photopeak in a sample of Ba-133:
Amplitude = 809.6473274589662 ± 24.636099224592314 counts
Peak Energy = 160.60478084398832 ± 0.019342705091128825 keV
Standard Deviation = 0.5237467836545735 ± 0.01933901750104941 keV
Background Counts = 1333.4565559019425 ± 6.802782860785766 counts
Plotting the posterior

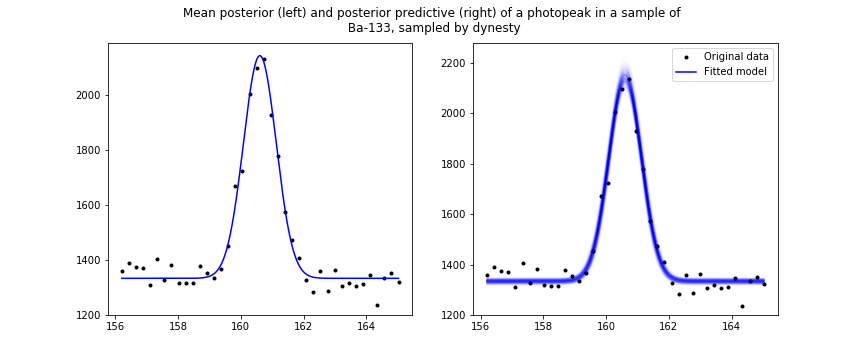

So far, dynesty is in strong agreement with PyMC3, with both the values and errors being comparable to those from either PyMC3 sampling method we investigated. Below are two plots, the left plot shows the mean Gaussian curve produced by dynesty, and the right shows the posterior predictive plot:
x, y = peaks_x[1], peaks_y[1]
fig, (ax1, ax2) = plt.subplots(1,2,figsize=(12,5))
xsmooth = np.linspace(min(x),max(x), 1000)
# mean posterior plot
ax1.plot(x, y, 'b.')
ax1.plot(xsmooth, gauss(xsmooth,a_dynesty,xc_dynesty,w_dynesty,y0_dynesty),'k:')
ax1.set_ylim(1200)
# posterior predictive plot
for i in range(nfits):
ax2.plot(xsmooth, gauss(xsmooth,a_samps_dynesty[i],xc_samps_dynesty[i],
w_samps_dynesty[i],y0_samps_dynesty[i]),'b-',alpha=0.01)
ax2.set_ylim(1200)
plt.suptitle('Mean posterior (left) and posterior predictive (right) of a photopeak in a sample of\n'
+ ' Ba-133, sampled by dynesty')
plt.show()

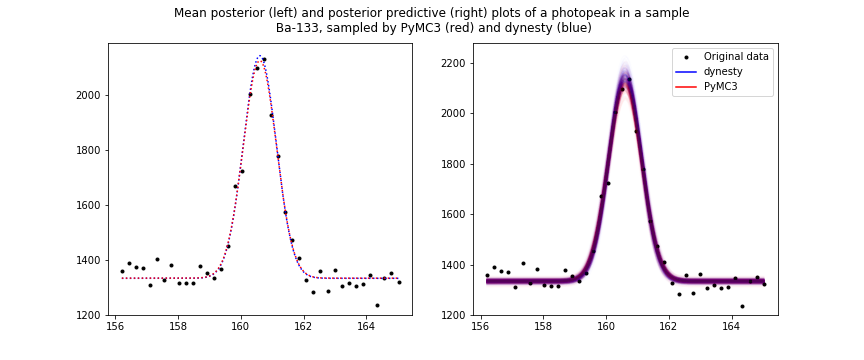

Again, this looks very simillar to the results produced by PyMC3. We can confirm this by remaking the same plot as above, but this time overplotting the mean and posterior predictive plots from PyMC3:
x, y = peaks_x[1], peaks_y[1]
fig, (ax1, ax2) = plt.subplots(1,2,figsize=(12,5))
xsmooth = np.linspace(min(x),max(x), 1000)
# mean posterior plot
ax1.plot(x, y, 'k.',label='Data')
ax1.plot(xsmooth, gauss(xsmooth,a_dynesty,xc_dynesty,w_dynesty,y0_dynesty),'b:',label='dynesty')
ax1.plot(xsmooth, gauss(xsmooth,a_pymc3,xc_pymc3,w_pymc3,y0_pymc3),'r:',label='PyMC3')
ax1.set_ylim(1200)
leg1 = ax1.legend(loc='upper right')
for lh in leg1.legendHandles:
lh.set_alpha(1)
# posterior predictive plot
for i in range(nfits):
ax2.plot(xsmooth, gauss(xsmooth,a_samps_dynesty[i],xc_samps_dynesty[i],
w_samps_dynesty[i],y0_samps_dynesty[i]),'b-',alpha=0.01,
label=('dynesty' if i == 0 else ''))
ax2.plot(xsmooth, gauss(xsmooth,a_samps_pymc3[1][i],xc_samps_pymc3[1][i],
w_samps_pymc3[1][i],y0_samps_pymc3[1][i]),'r-',alpha=0.01,
label=('PyMC3' if i == 0 else ''))
ax2.set_ylim(1200)
leg2 = ax2.legend(loc='upper right')
for lh in leg2.legendHandles:
lh.set_alpha(1)
plt.suptitle('Mean posterior (left) and posterior predictive (right) plots of a photopeak in a sample'
+ '\n Ba-133, sampled by PyMC3 (red) and dynesty (blue)')
plt.show()
Model comparisons
This above plot shows quite nicely that whilst dynesty predicts a slightly higher amplitude than PyMC3, both samplers do agree with eachother to very simillar degrees of accuracy, with only a small discrepancy at the very tip of the peak. We can determine if this has a large impact on the results of the GRS analysis by finding the area under the mean curve produced by dynesty:
peak_integral_dynesty = integrate.quad(lambda t:
gauss(t, a_dynesty, xc_dynesty,
w_dynesty, y0_dynesty), 159.1, 162.2)[0] / c_0
peak_integral_err_dynesty = np.sqrt(2 * np.pi *
((w_dynesty * aerr_dynesty)** 2 +
(a_dynesty * werr_dynesty) ** 2 )
+ 2*a_dynesty*w_dynesty+a_w_dynesty_cov) / c_0
percent_err_dynesty = 100*peak_integral_err_dynesty/peak_integral_dynesty
print('Total counts = {} \u00B1 {} counts \n'.format(peak_integral_dynesty,
peak_integral_err_dynesty) +
'Percentage error = {}%'.format(percent_err_dynesty))
Total counts = 22968.854117562147 ± 201.03466521968398 counts
Percentage error = 0.8793029468008915%
Within their errors, dynesty and both PyMC3 methods agree on the total counts under the curve, and have produce a percentage error under 1%.
PyMC3 is a little more intuitive to use in general, however dynesty is a lot faster than PyMC3 on my machine, and also gives a value for the marginal likelihood in the process.
